Molten Metal Handling / Foundry Ladles

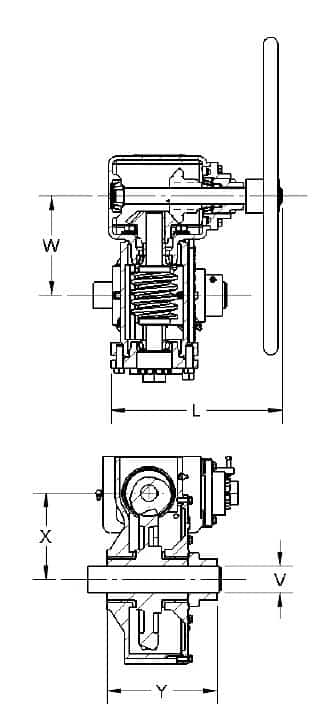

Click image to view enlarged diagram
Heavy-Duty Geared Ladles

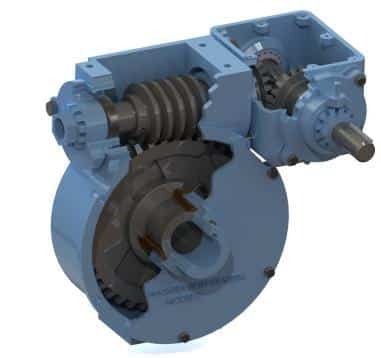

Six Sizes of Powerful Ladle Gearings to Power and Control your Modern Ladles
For the tilting and pouring of metal loads that range beyond the free, easy control of hand shanks there are MODERN, highly developed gearings.
All six sizes of gearing are secured to the hub of the worm wheel shaft and to the bail frame in a manner that causes all gearing weight to be transmitted into the bail frame and up to the Pouring Device, crane or hoist. The ladle bowl and shank ring are effectively relieved of gearing weight.
Trunnion housings, with their grease fittings, fully enclose the anti-friction bearings.
Gearings are fully enclosed in the gear housings.
Various sizes of hand wheels are available to reduce hand-wheel forces required by the operator. Motor drives are available for all of our gearing sizes.
Geared ladles are available in many types and sizes to meet a wide range of metal pouring requirements.
Fluid Powered Pouring Device
Model HDC (Hydraulic Pouring Device)
Let hydraulics help the pouring.
Series 1000 Covered, Tapered Ladles
No.1 Type (Lever) Shanks
Covered tapered ladle with No. 1 type lever shank and detachable ball.
Series 1010 Tapered Open Ladles
No.1 Type (Lever) Shanks
Open tapered ladle with No. 1 type lever shank, roller bearing trunnions and detachable bail.
Series 1080 Geared, Covered, Tapered Ladles
Geared, covered tapered ladle with square bail
Modern series 1080 ladles with their worm and worm wheel gearings reduce the operator's work to a minimum.
